• Black adjustable luggage rack
• Chrome front bumper w/spectra gray cover
• Chrome rear bumper w/spectra gray step pad
• Dark argent air dam
• Spectra gray body-side moldings w/chrome strip
• Deluxe chrome grille
• Dual composite halogen headlamps
• Automatic headlamp control
• Daytime running lights
• Dual black foldaway pwr heated mirrors w/ground illumination
• Deep tinted glass
• Intermittent windshield wipers w/pulse washers
• Spectra gray door handles
• Rear liftgate w/liftglass-inc: rear window wiper/washer

• Cloth reclining 40/20/40 split front bench seat-inc: dual manual lumbars, center fold-down armrest storage
• 60/40 split second row bench seat
• Third row bench seat
• Color-keyed carpeting
• Vinyl front/center/rear/cargo floor mats
• Tilt steering column
• Leather-wrapped steering wheel
• Warning tones-inc: key-in-ignition, seat belt, headlamp, turn signal
• Pwr windows-inc: driver lockout
• Programmable pwr door locks
• Cruise control
• Remote keyless entry
• Content theft alarm
• Passlock theft deterrent system
• Front air conditioning
• Rear air conditioning
• Auxiliary rear heater
• Rear window defogger
• ETR AM/FM stereo w/compact disc, auto tone control-inc: seek-scan, digital clock, theft lock, speed compensated volume
• Enhanced-performance 9-speaker sound system w/subwoofer
• Dual front/dual rear cupholders
• Dual front/single rear cargo area covered pwr points
• Electrochromic rearview mirror w/8-point compass, outside temp
• Short overhead console
• Full color-keyed cloth headliner
• Dual cloth sunshades w/extenders, secondary shades, dual illuminated visor vanity mirrors
• Front passenger/dual rear seat assist handles
• Lights-inc: dome w/delayed entry feature, ashtray, glove box, underhood
• Door handle activated illuminated entry feature w/ground illumination
• Color-keyed retractable removable cargo shade
• Vertically-oriented cargo net

• 4-wheel anti-lock braking system
• Driver & front passenger front airbags
• Driver & front passenger side-impact airbags
• Lap/seat-mounted shoulder seat belts at all outboard seating positions
• Lap seat belt at all inboard seating positions
• Daytime running lights

LS PREFERRED EQUIPMENT GROUP

• *Contents listed in STD Equipment*

REAR LIFTGATE W/LIFTGLASS

• rear window wiper/washer (STD)

TRAILER PKG

• weight-distributing hitch platform
• 7-lead wiring connector
• trailer brake pre-wire harness
• high-capacity air cleaner
• aux trans oil cooler

CONVENIENCE PKG

• front/center/rear/cargo carpeted floor mats
• electrochromic outside driver-side mirror
• Homelink universal garage door opener

7200# GVWR

• (3600 front/4000 rear)
• springs (-TBD- front/-TBD- rear)
• axles (-TBD- front/ -TBD- rear) (STD)

4-SPEED ELECTRONICALLY-CONTROLLED AUTOMATIC TRANSMISSION W/OD

• tow/haul mode (STD)

SKID PLATE PKG

• differential case/oil pan/transfer case shields

LEATHER SEAT TRIM

• driver & front passenger 6-way pwr seats

ETR AM/FM STEREO W/CASSETTE, COMPACT DISC, AUTO TONE CONTROL

• seek-scan
• digital clock
• theft lock
• speed compensated volume

5.3L (325) SFI V8 (VORTEC) ENGINE

• (STD)

SMOOTH RIDE SUSPENSION

• (STD)

RECLINING FRONT BUCKET SEATS

• manual lumbar
• driver & front passenger inboard armrests
• floor console

• 3.73 AXLE RATIO

  DRIVER & FRONT PASSENGER 6-WAY PWR SEATS

  (5) P245/75R16E ALL-SEASON SBR OWL TIRES

  SIDE-MOUNTED ASSIST STEPS

  FOG LAMPS

  TWO-TONE PAINT

  LOCKING DIFFERENTIAL

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 16
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 13.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4000
• Curb Weight - Front (lbs): 2736
• Curb Weight - Rear (lbs): 2387
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 13,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1000
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 5-Link Coil
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 32
• Stabilizer Bar Diameter - Front (in): 1.26
• Stabilizer Bar Diameter - Rear (in): 1.19
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 1.14
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Tires
• Front Tire Order Code: QNL
• Front Tire Order Code: QNK
• Rear Tire Order Code: QNL
• Rear Tire Order Code: QNK
• Spare Tire Order Code: QNL
• Spare Tire Order Code: QNK
• Front Tire Size: P245/75R16
• Rear Tire Size: P245/75R16
• Spare Tire Size: P245/75R16
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x 7.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Speed-Sensitive Pwr
• Steering Ratio (:1), On Center: 12.7
• Steering Ratio (:1), At Lock: 14.0
• Turning Diameter - Curb to Curb (ft): 42.3
• Turning Diameter - Wall to Wall (ft): 46.0
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32.5
• Fuel Tank Location: Behind Rear Axle
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/rear bumper (in): 219.3
• Width, Max w/o mirrors (in): 78.8
• Height, Overall (in): 75.7
• Overhang, Front (in): 36.9
• Overhang, Rear w/bumper (in): 52.4
• Ground to Top of Load Floor (in): 31.1
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 8.4
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 104.6
• Cargo Area Length @ Floor to Seat 2 (in): 69.6
• Cargo Area Length @ Floor to Seat 3 (in): 36.1
• Cargo Area Width @ Beltline (in): 49.2
• Cargo Box Width @ Wheelhousings (in): 49.1
• Cargo Box (Area) Height (in): 40.5
• Cargo Volume to Seat 1 (ft³): 138.4
• Cargo Volume to Seat 2 (ft³): 90.0
• Cargo Volume to Seat 3 (ft³): 45.7
• Interior Dimensions
• Passenger Capacity: 8
• Passenger Capacity: 9
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 61.6
• Third Head Room (in): 38.6
• Third Leg Room (in): 36.1
• Third Shoulder Room (in): 64.8
• Third Hip Room (in): 49.2
• Summary

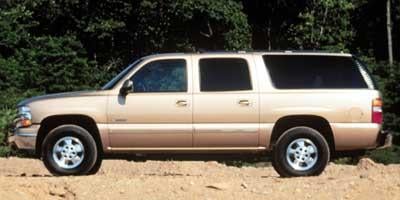

• Vehicle Name: Chevrolet Suburban
• Body Style: 4 Door 1500
• Body Code: E52
